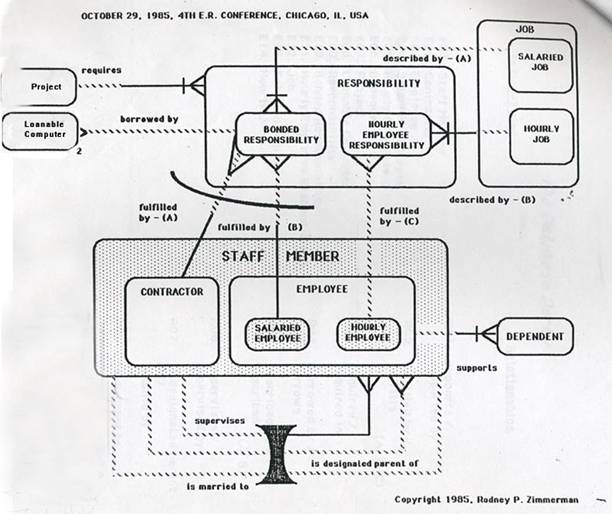

ER characteristics
6 entities
XML Schema

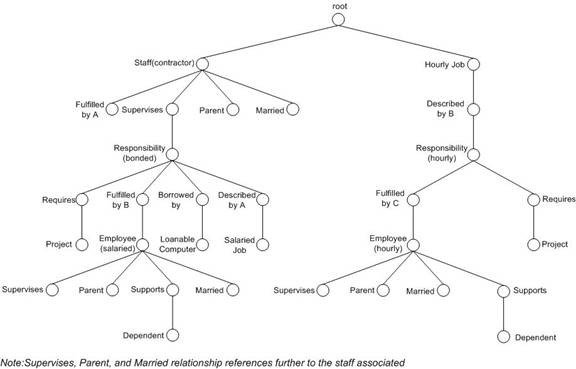

DEEP
Q1 Find the rank of Employee Dorian Mahoney
DEEP
For $a in distinct-values(//staff[name="Dorian Mahoney"])
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return $a/rank
AF, SHALLOW
For $a in //staff[name="Dorian Mahoney"]
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return $a/rank
EN, MCMR, DR
For $a in //{c1}employee[{c1}name="Dorian Mahoney"]
Return $a/{c1}rank
Q2 Find all the dependents of Jeffery W. Lands.
DEEP
For $a in distinct-values(//staff[name="Jeffery W. Lands"])
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return $a//dependent
AF
For $a in //staff[name="Jeffery W. Lands"]
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return $a//dependent
SHALLOW
For $a in //staff[name="Jeffery W. Lands"]
Let $b := //dependent
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
And $b/@id = $a/supports/@idref
Return $a//dependent
EN, MCMR, DR
For $a in //{c1}employee[{c1}name="Jeffery W. Lands"]
Return $a//{c1}dependent
Q3 What is the average age of the dependents of Employee Steve Champion
DEEP
For $a in distinct-values(//staff[name="Steve Champion"])
Let $b := $a//dependent
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return AVG($b/age)
AF
For $a in //staff[name="Steve Champion"]
Let $b := $a//dependent
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return AVG($b/age)
SHALLOW
For $a in //staff[name="Steve Champion"]
Let $b := $a//dependent
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
And $a/supports/@idref = $b/@id
Return AVG($b/age)
EN, MCMR, DR
For $a in //{c1}employee[{c1}name="Jeffery W. Lands"]
Return AVG($a//{c1}dependent/{c1}age)
Q4 Accept Transactions For Staff Members or any of its subtypes. However, for supertypes Staff Member and Employee, further qualify the request by inquiring about the subtype.
This is a sole rule specification which is not relevant to making the difference on the query specifications in the same system.
Q5 Do not accept an "add dependent" transaction for a contractor.
This is a sole rule specification which is not relevant to making difference on the query specifications in the same system.
Q6 Find all Hourly Employees who supervise Contractors?
DEEP
For $a in distinct-values(//staff[type="Hourly Employee"])
For $b in //staff[type="Contractor"]
Where $a/supervises/@idref = $b/@id
Return $a
SHALLOW, AF
For $a in //staff[type="Hourly Employee"]
For $b in //staff[type="Contractor"]
Where $a/supervises/@idref = $b/@id
Return $a
EN, MCMR, DR
For $a in //{c4}staff
For $b in $a//{c4}staff
For $a in //{c6}Hourly_Employee
For $b in //{c2}Contractor
Return $a
Q7 Find the average age of all Employees. (Can you use synonyms in queries?)
DEEP
For $a in distinct-values(//staff)
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return AVG($a/age)
AF, SHALLOW
For $a in //staff
Where $a/emptype = "Salaried Employee" or $a/emptype = "Hourly Employee"
Return AVG($a/age)
EN, MCMR, DR
For $a in //{c1}employee
Return AVG($a/{c1}age)
Q8 Find all the people (Dependents and Staff Members) younger than 40 years of age.
DEEP
For $a in distinct-values(//staff)
Where $a/age < 40
Return $a
UNION
For $a in distinct-values(//dependent)
Where $a/age < 40
Return $a
AF, SHALLOW
For $a in //staff
Where $a/age < 40
Return $a
UNION
For $a in //dependent
Where $a/age < 40
Return $a
EN, MCMR, DR
For $a in //{c7}staff
Where $a/{c7}age < 40
Return $a
UNION
For $a in //{c1}dependent
Where $a/{c1}age < 40
Return $a
Q9 Reject a transaction for Contractor Chuck Lowes Jr. to borrow a third loanable computer in his Bonded Responsibility for the New Project Study, "Vice President Position".
DEEP
If
For $a in //staff[type="Contractor" and name="Chuck Lowes Jr."]
For $b in $a//responsibility[type="Bonded"]
Where $b//project/name = "Vice President Position"
Return $b//loanable_computer[2]
Exist then Reject
AF
If
For $a in //project[name="Vice President Position"]
For $b in //staff[type="Contractor" and name="Chuck Lowes Jr."]
For $c in $a/responsibility[type="Bonded"]
Where $c/fulfilledbyA/@idref = $b/@id
Return $c//loanable_computer[2]
Exist then reject
SHALLOW
If
For $a in //staff[type="Contractor" and name="Chuck Lowes Jr."]
For $b in //responsibility[type="Bonded"]
For $c in //project[name="Vice President Position"]
Let $d := //loanable_computer
Where count($d) = 2
And $a/@id = $b/fulfilledA/@idref
And $b/requires/@idref = $c/@id
And $d/borrowed_by/@idref = $b/@id
Return $a
Exist then reject
EN, MCMR, DR
If
For $a in //{c1}project[{c1}name="Vice President Position"]//{c1}responsibility
For $a in //{c2}contractor[{c2}name="Chuck Lowes Jr."]/bonded_responsibility
Return $a/{c2}loanable_computer[2]
Exist then reject
Q10 Find all the Computers on loan to Contractors in the Customer Service System Project.
DEEP
For $a in //responsibility[type="Bonded"]
Where $a//project/name="Customer Service System"
Return $a//loanable_computer
AF
For $a in //project[name="Customer Service System"]
Return $a//loanable_computer
SHALLOW
For $a in //project[name="Customer Service System"]
For $b in //responsibility[type="Bonded"]
For $c in //loanable_computer
Where $a/@id = $b/requires/@idref
And $c/borrowed_by/@idref = $b/@id
Return $c
EN
For $a in //{c1}project[{c1}name="Customer Service System"]/responsiblity
For $a in //{c2}bonded_responsibility
Return $a//{c2}loanable_computer
MCMR, DR
For $a in //{c1}project[{c1}name="Customer Service System"]
Return $a//{c1}loanable_computer
Q11 Find all the computers on loan to contractors in the Customer Service System project who fulfill a responsibility for a job with a minimum rank of at least 10
DEEP
For $a in //responsibility[type="Bonded"]
Where $a//project/name="Customer Service System"
And $a//salaried_job/rank >= 10
Return $a//loanable_computer
AF
For $a in //project[name="Customer Service System"]
For $b in $a//responsibility
For $c in //job[rank>=10]
Where $b/salaried_job/@idref = $c
Return $b//loanable_computer
SHALLOW
For $a in //project[name="Customer Service System"]
For $b in //responsibility[type="Bonded"]
For $c in //job[type="Salaried" and rank >= 10]
For $d in //loanable_computer
Where $a/@id = $b/requires/@idref
And $d/borrowed_by/@idref = $b/@id
And $b/describedbyA/@idref =$c/@Id
Return $d
EN
For $a in //{c1}project[{c1}name="Customer Service System"]/responsiblity
For $a in //{c4}salaried_job[{c4}rank >=10]//bonded_responsibility
Return $a//{c2}loanable_computer
MCMR, DR
For $a in //{c1}project[{c1}name="Customer Service System"]//responsibility
For $a in //{c4}salaried_job[{c4}rank >=10]//bonded_responsibility
Return $a//{c4}loanable_computer
Q12 Find all the computers on loan to contractors in the Customer Service System project who fulfill a responsibility for a job with a minimum rank of at least 10 and also who directly or indirectly supervise at least five Staff Members.
//Function to determine number of person it supervises
Function:CountSup($input)
{
count($input/supervises) + ( For $a in $input
For $b in //staff
Where $a/supervises/@idref = $b/@id
Return CountSup($b))
}
DEEP
For $a in //staff[type="Contractor"]
For $b in $a//responsibility[type="Bonded" and //project/name="Customer Service System"]
Where $b//salaried_job/rank >= 10
And CountSup($a) > 5
Return $b//loanable_computer
AF
For $a in //project[name="Customer Service System"]
For $b in $a//responsibility
For $c in //job[rank>=10]
For $d in //staff[type="contractor"]
Where $b/salaried_job/@idref = $c
And $d/@id = $b/fulfilledbyA/@idref
And CountSup($d) > 5
Return $b//loanable_computer
SHALLOW
For $a in //project[name="Customer Service System"]
For $b in //responsibility[type="Bonded"]
For $c in //job[type="Salaried" and rank >= 10]
For $d in //loanable_computer
For $e in //staff[type="Contractor"]
Where $a/@id = $b/requires/@idref
And $d/borrowed_by/@idref = $b/@id
And $b/describedbyA/@idref =$c/@Id
And $e/@id = $b/fulfilledbyA/@idref
And CountSup($e) > 5
Return $d
EN, MCMR, DR
For $a in //{c1}project[name="Customer Service System"]//{c1}responsibility
For $a in //{c4}salaried_job[{c4}rank >=10]//{c4}bonded_responsibility
For $b in //{c2}contractor
For $b in //{c4}staff
Where count($b//{c4}supervises) > 5
And $b//bonded_responsibility = $a
Return $a//{c2}loanable_computer
Q13 How many dollars would it cost the company over one year to immediately increase the Hourly Rate of all Hourly Employees by 10%?
Assume 1) 45 hr. work week average with the distribution of hours equal in all ranks.
2) time and a half for overtime
3) no staff changes
DEEP
SUM( For $a in distinct-values(//staff[emptype="Hourly Employee"])
Return $a/hourly_rate) * 110% * 45 * 52
AF, SHALLOW
SUM( For $a in //staff[emptype="Hourly Employee"]
Return $a/hourly_rate) * 110% * 45 * 52
EN, MCMR, DR
SUM( For $a in //{c6}hourly_employee
Return $a/hourly_rate) * 110% * 45 * 52
Q14 Reject a transaction to change the maximum rank of Hourly Job Typist from 35 to 37 if there are any Hourly Employees fulfilling Typist responsibilities who have a higher rank than 37.
DEEP
If
For $a in //hourly_job[title ="Typist" and maxrank = 35]
Where exist $a//rank > 37
Return
Then reject modify $a/maxrank to 37
AF, SHALLOW
If
For $a in //job[type ="Hourly" and title="Typist" and maxrank = 35]
Let $b := For $c in //staff[type="Hourly" and rank > 37]
For $d in //responsibility
Where $d/fulfilledbyC/@idref = $c/@id
And $a/@id = $d/describedbyB/@Idref
Return $d
Where count($b) > 0
return
Then reject modify $a/maxrank to 37
EN, MCMR, DR
If
For $a in //{c5}hourly_job[{c5}title="Typist" and {c5}maxrank = 35]
For $b in //{c6}hourly_employee[{c6}rank > 37]
Where $a//{c5}hourly_responsibility = $b//{c6}hourly_responsibility
Return
Then reject modify $a/maxrank to 37
Q15 Fire Employee Steven Champion. Be sure to delete related dependents. Also modify the Supervisor, Spouse, Designated Parent, and Fulfilling Staff Member Id (Bonded Responsibility) attributes in other entity occurrences if related.
DEEP
For $a in //staff[name="Steven Champion"]
Delete subtree $a
AF, SHALLOW
For $a in //staff[name="Steven Champion"]
For $b in //dependent
For $c in //responsibility
Where $b/supports/@idref = $a/@id
And ($c/fulfilledbyA/@idref = $a/@id
or $c/fulfilledbyB/@idref = $a/@id
or $c/fulfilledbyC/@idref = $a/@id)
delete subtree $a, $b, $c/fulfilledbyA, $c/fulfilledbyB, $c/fulfilledbyC
(Deleting other dependents would be alike)
EN, MCMR, DR
For $a in //{c7}staff[{c7}name="Steven Champion"]
Delete $a, $a//{c6}hourly_responsibility, $a//{c3}bonded_responsibility, $a//{c1}dependent
(Deleting other dependents would be alike)
Q16 Find all the computers on loan to Hourly Employees (Note: Hourly Employees may not borrow computers. What kind of feedback can you give to a query that does not make sense?)
DEEP
For $a in distinct-values(//employee[type="Hourly"])
Return $a//loanable_computer
AF, SHALLOW
For $a in //employee[type="Hourly"]
For $b in //responsibility
Where $b/fulfilledbyB/@idref = $a/@id
Return $b//loanable_computer
EN, MCMR, DR
For $a in //{c6}hourly_employee
Return $a//{c6}hourly_responsibility//{c2}loanable_computer
Q17 Reject a transaction to cancel the Project "New Product Study" if it would leave a Contractor or Salaried Employee fulfilling no responsibilities.
DEEP
If
For $a in distinct-values(//employee[type="Contractor"])
Let $b := $a//responsibility[type="Bonded"]
Let $c := $a//responsibility[type="Bonded" and //project/name="New Product Study"]
Where count($b) = count($c)
Return $a
Then reject
OR
If
For $c in //responsibility[type="Bonded" and //project/name="New Product Study"]
For $d in $c/employee
Let $e := //employee[type="Salaried Employee"]
Where $e/@id = $d/@id
And count($e) = 1
Return $c
Then reject
AF
If
For $a in //employee[type="Contractor"]
Let $b := For $c in //project[name="New Product Study"]//responsibility
Where $c/fulfilledbyB/@idref = $a/@id
Return $c
Let $d := For $e in //responsibility
Where $e/fulfilledbyB/@idref = $a/@id
Return $e
Where count($b) = count($d)
Return $a
Then reject
(Alike, for the salaried employee)
SHALLOW
If
For $a in //employee[type="Contractor"]
Let $b := For $c in //project[name="New Product Study"]
For $d in //responsibility
Where $d/fulfilledbyB/@idref = $a/@id
And $c/@id = $d/requires/@idref
Return $d
Let $e := For $f in //responsibility
Where $f/fulflledbyB/@idref = $a/@id
Return $d
Where count($b) = count($e)
Return $a
Then reject
(Alike, for the salaried employee)
EN, MCMR, DR
For $a in //{c2}contractor
Let $b := $a//{c2}bonded_responsiblity
Let $c := For $d in //{c1}project[{c1}name="New Product Study"]//responsibility
$d in $a//{c2}bonded_responsibility
Return $d
Where count ($b) = count($c)
Return $a
(Alike, for the salaried employee)
Before accepting any transaction to change the database, issue a warning message if the transaction would leave a Staff Member as a direct or indirect supervisor of :
Q18 another Staff member who is their child
//Recursively Find $a supervises $b, depth first search
Fn($a, $b) {
If $a/supervises/@idref = $b/@id
Or
For $c in //staff
Where $a/supervises/@idref = $c/@id
Return Fn($c, $b)
Return true;
}
//Recursively find $a ancerstor $b
Fn2($a, $b)
{
If $a/parent/@idref = $b/@id
Or
For $c in //staff
Where $a/parent/@idref = $c/@id
Return Fn2($c,$b)
Return true;
Else return false;
}
//Relative in the chain
Fn3($a, $b, $c)
{
If Fn2($c, $a)
And
Fn2($c,$b)
Then return true;
Else return false;
}
DEEP, AF, SHALLOW
If
For $a in //staff
For $b in //staff
Where $b/parent/@idref = $a/@id
And Fn($a,$b)
Return $a
Then reject
EN, MCMR, DR
If
For $a in //{c4}staff
For $b in $a//{c4}staff //$a supervises $b
For $a in //{c5}staff //$a parent $b
For $b in $a/{c5}staff
Return $a
Then reject
Q19 another Staff member who is their parent
DEEP, AF SHALLOW
If
For $a in //staff //find $a parent $b
For $b in //staff
Where $b/parent/@idref = $a/@id
And Fn($a, $b)
Return $a
Then reject
EN, MCMR, DR
If
For $a in //{c4}staff
For $b in $a//{c4}staff //$a supervises $b
For $b in //{c5}staff //$b parent $a
For $a in $b/{c5}staff
Return $a
Then reject
Q20 another Staff member who is a relative
(The above query expressions from Q18 and Q19 (OR together) OR the following:)
DEEP, AF, SHALLOW
If
For $a in //staff
For $b in //staff
Where $a/married/@idref = $b/@id
And Fn($a, $b)
Return $a
Then reject
OR
If
For $a in //staff
For $b in //staff
For $c in //staff
Where Fn($a, $b) and
Fn3($a, $b, $c)
Return $a
Then reject
EN, MCMR, DR
If
For $a in //{c4}staff
For $b in $a//{c4}staff //$a supervises $b
For $a in //{c6}staff
For $b in $a//{c6}staff //married
Return $a
Then reject
OR
//X – Y – a
// |- b - a
If
For $c in //{c4}staff
For $d in $c//{c4}staff
For $e in //{c5}staff
For $c in $e//{c6}staff
For $d in $e//{c6}staff
Return $c
Then reject
